ZELL® Factory System

Modular. Standard components.

Part carrier system

Do you want to produce, clean and store in a single Part carrier? Transport your Part more economically, efficiently and sustainably with our latest Part carrier system. Flexibly adjust your Part carrier in height and area for maximum capacity and ideal Part holding.

The reusable containers/Part carrier systems created are convincing because industrial manufacturers can work from the blank to the finished product in a single standard throughout the entire manufacturing process. This completely eliminates the need for recharging. The systems are modularly adaptable and can therefore be used in a wide range of industries. - Jury, German Packaging Award

Now it's becoming an innovative modular system

The assembly consists of a plastic carrier. The customer can choose from five surface sizes. Two retaining brackets guarantee excellent handling and stackability. The distance to the carrier can be varied with the number of spacer sleeves used (5 mm or 10 mm), for a height of 20 - 150 mm.

The assembly is bolted with self-locking nuts. This ensures easy assembly and fixes the retaining brackets to the plastic support. Customers also have the option of using a laser to engrave all relevant data on a labeling plate. These are screwed to the side of the carrier.

The innovative design of the entire assembly results in decisive advantages over conventional stainless steel Part carriers:

more about our new plastic Part carriers

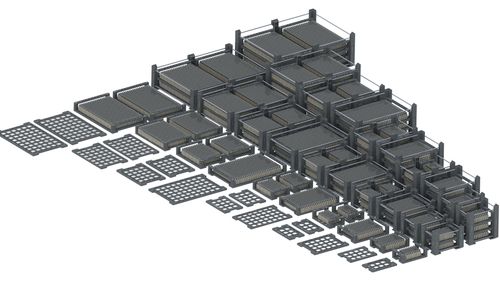

Our five standard sizes

555x355; 355x255; 255x155 mm (Euro standard)
425x275; 275x190 mm (Schaefer)

Not sure what you need?

We would be happy to discuss your specific process requirements with you in a short online meeting.
It is important to us to configure the best system for your application.
Book a free meeting

How to configure your Part carrier system

Configure now

Analyze component

  • Specify the dimensions and pick-up points of the component
  • Automation process consider
  • Optionally submit a technical drawing
  • Optionally submit a CAD or STEP file
Send a non-binding inquiry now
more about Part carriers
Customer component

Select clip

  • Select the appropriate clip or have it developed for the respective component
  • The ideal Part holder made of high-quality polyamide
  • Dimensionally stable and suitable for all common fluids from industrial cleaning equipment manufacturers
  • Plastic baskets to wash small Parts as bulk material
  • a wide range of standard clips and multiclips adapted to your component for maximum protection during transport and cleaning operations
more about clipsStandard, multi-clips and plastic baskets
Multiclip

Adapt Part carrier

  • Select the base area of the carrier according to batch volume, automation process and machine size
  • Die-cut forms for the assembly of standard clips or detents for the assembly of multi-clips to maximize cavities on the carrier
  • Five standard sizes: 255x155; 275x190; 355x255; 425x275; 555x355
  • flexibly adjustable in height to your component, in a 5 mm grid, by the selected number of spacers
  • Two handles guarantee excellent handling and stackability
  • Manufactured from high-quality polyamide or stainless steel, dimensionally stable for all common cleaning processes
  • All components can be easily disassembled, replaced, adapted or recycled.
  • optional marking plates for laser engraving, barcodes
Part carrier
more about Part carriers
Part carrier

place in basket

  • Select a suitable basket for the Part carrier
  • Select heights of 200 and 300 mm
  • Select basket with or without intermediate piece for more holding flexibility
  • For each standard size of Part carrier we offer the suitable basket made of plastic or stainless steel
  • Two round frames guarantee stability. It is enough to replace them to adapt to a new Part carrier size
  • Manufactured from high-quality polyamide or stainless steel, dimensionally stable for all common cleaning processes
  • All components can be easily disassembled, replaced, adapted or recycled.
  • lockable with retaining clips or clamping lid
  • Available accessories: removal tools,  adapters, labeling plates for laser marking and bar codes
more about basketsBaskets
Basket

Systematic cleaning

Whether bulk material or highly complex assemblies, ZELL offers a variety of systems and components for professional component cleaning.

Booklet ZELL® Factory System

In this free e-paper, you will get an overview of:
  • Technical drawings
  • Background information on technical development
  • Unique selling points
  • Part carrier as a modular system, assembly instructions and component selection
  • Industrial basket kits
  • More capacity with Multiclips
  • Lids made of Polymer or Stainless Steel
  • Adapters for cleaning systems
  • Trusted standardized Part Carriers
  • Part carriers as customized industrial solution
